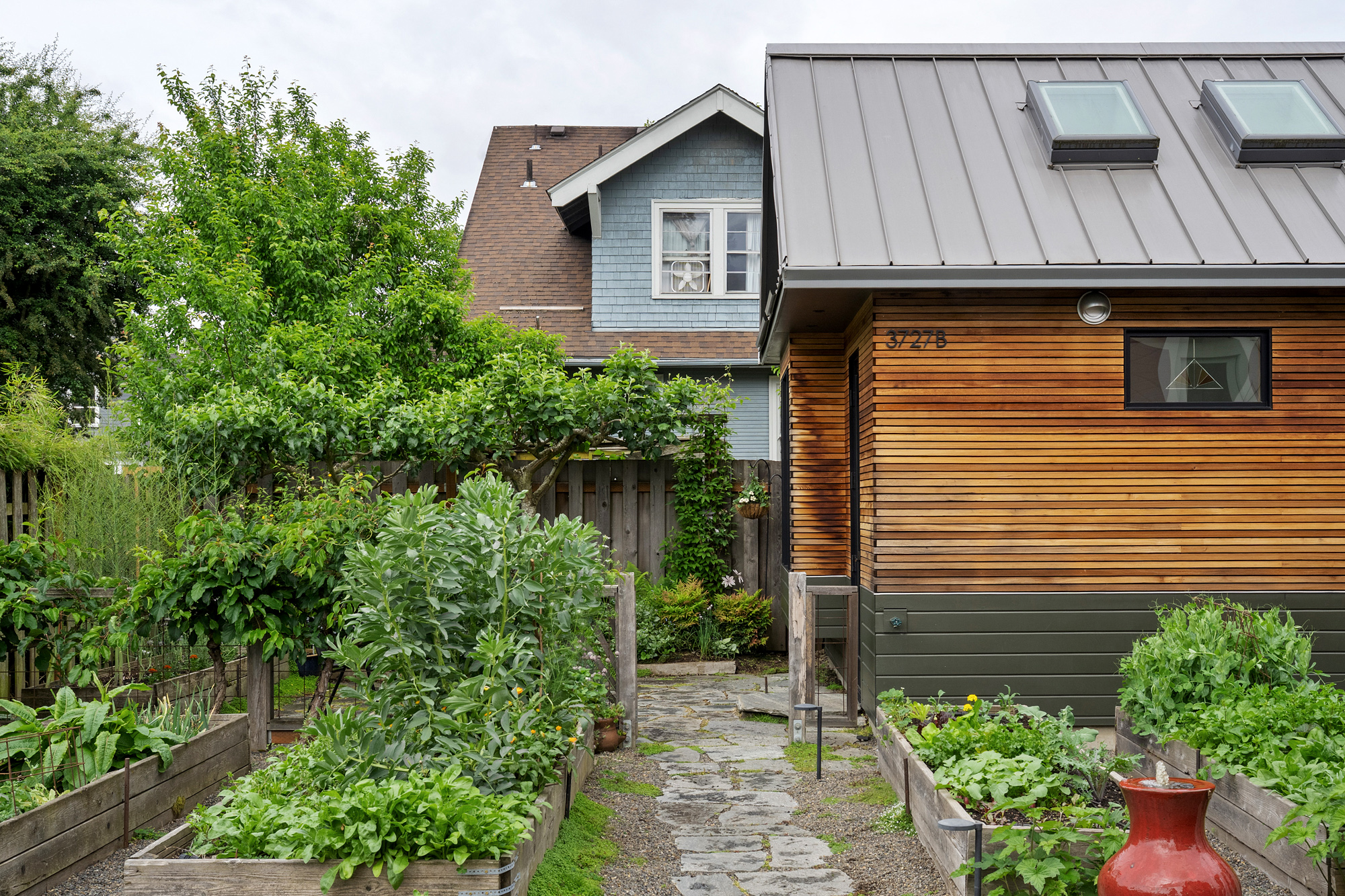

View down a garden path lined with raised vegetable beds toward the Irving Park ADU's cedar-clad gable end and standing-seam metal roof, NE Portland by Tweto Architecture

Irving Park ADU

ADU · Northeast Portland

Intended as additional living space for a growing family (ours), this 325-square-foot ADU was designed as a multi-function space. It has been used as a guest house, a home office, a short-term rental, and a place to live while remodeling the main house, demonstrating the versatility of an ADU.

Tall windows, glazed doors, and a partially vaulted ceiling make it feel larger than its footprint. A compact yet efficient floor plan feels comfortable despite the small size.

Contractor: Asmund Tweto

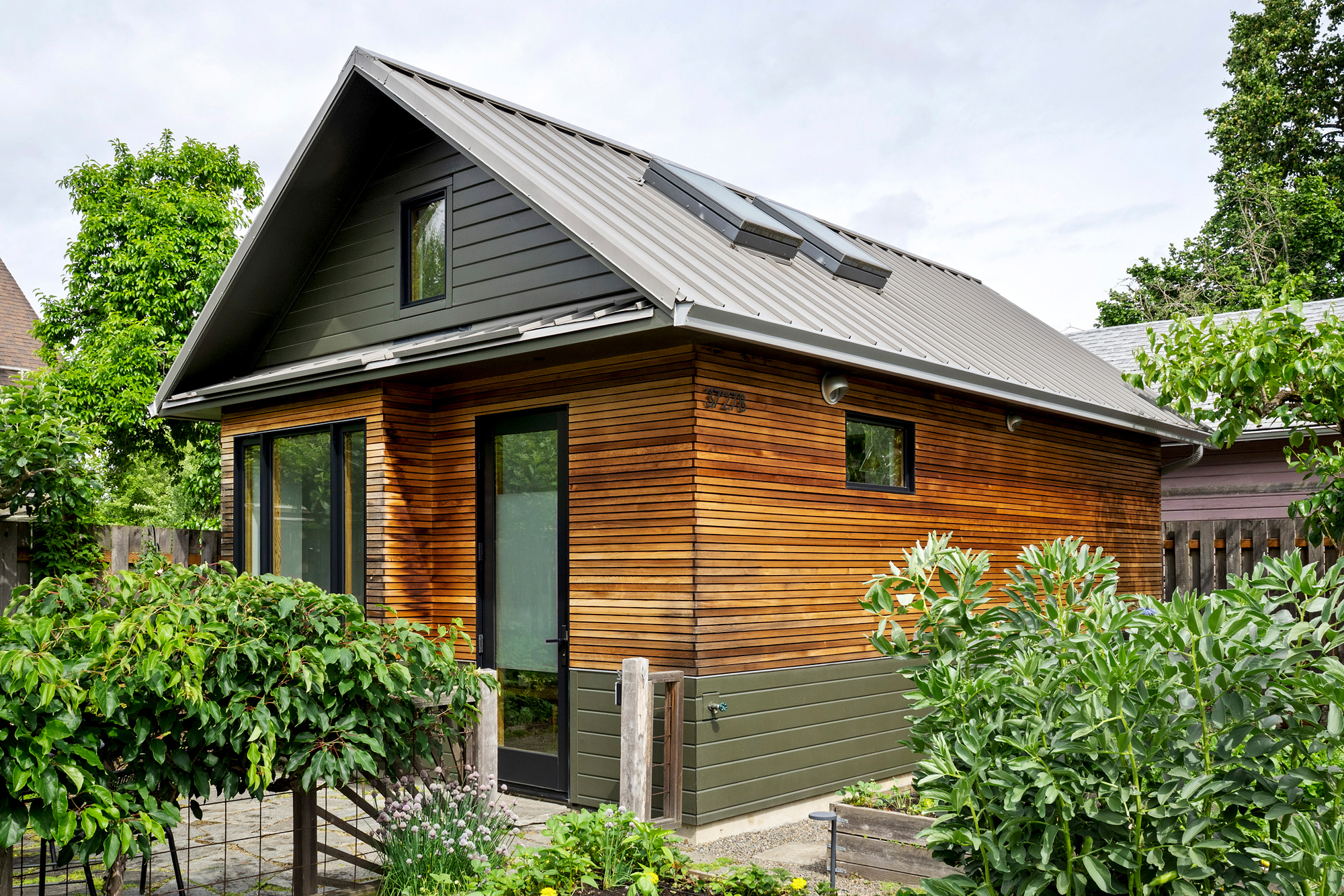

Front corner of the Irving Park ADU showing cedar lap siding, full-height glazed doors and windows, and a standing-seam metal roof with skylights, surrounded by garden plantings, by Tweto Architecture

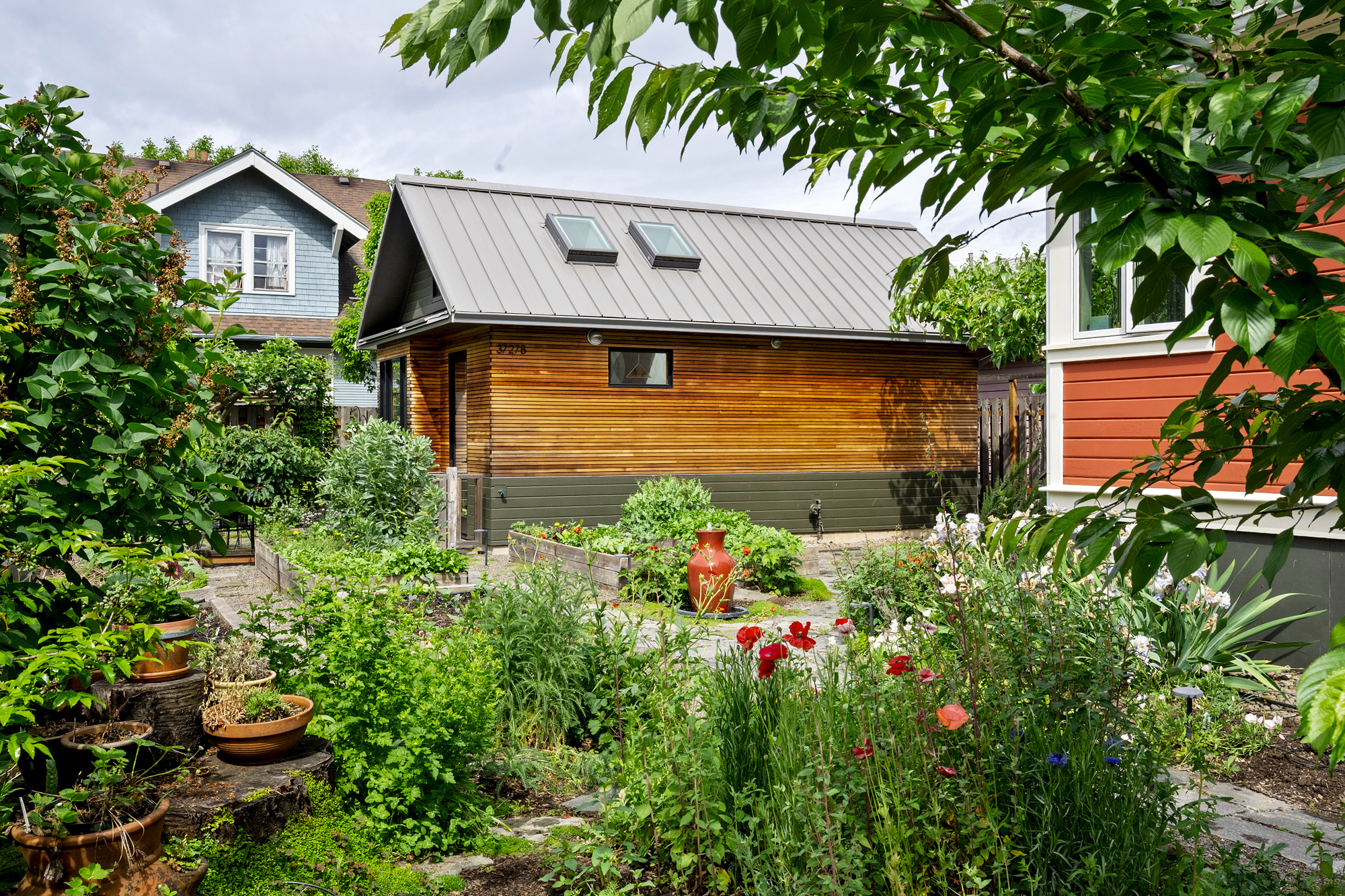

Gable end of the Irving Park ADU seen through garden plantings, with cedar siding, dark green base, and metal roof, NE Portland by Tweto Architecture

The ADU occupies the northwest corner of a standard 50-by-100-foot Portland lot. With careful siting and a compact footprint, the ADU defines distinct outdoor spaces while preserving much of the yard. Carefully placed windows maintain privacy between the ADU and the main house while opening to a south-facing private patio.

A restrained palette gives the small space warmth: polished concrete floors with hydronic heat, exposed framing, and vertical-grain Douglas Fir doors and trim.

The envelope is built to perform, with advanced framing, dense-pack cellulose, and careful air-sealing under a durable metal roof. Operable windows draw night air across the slab to cool it in summer, and a ducted mini-split provides additional cooling when needed.

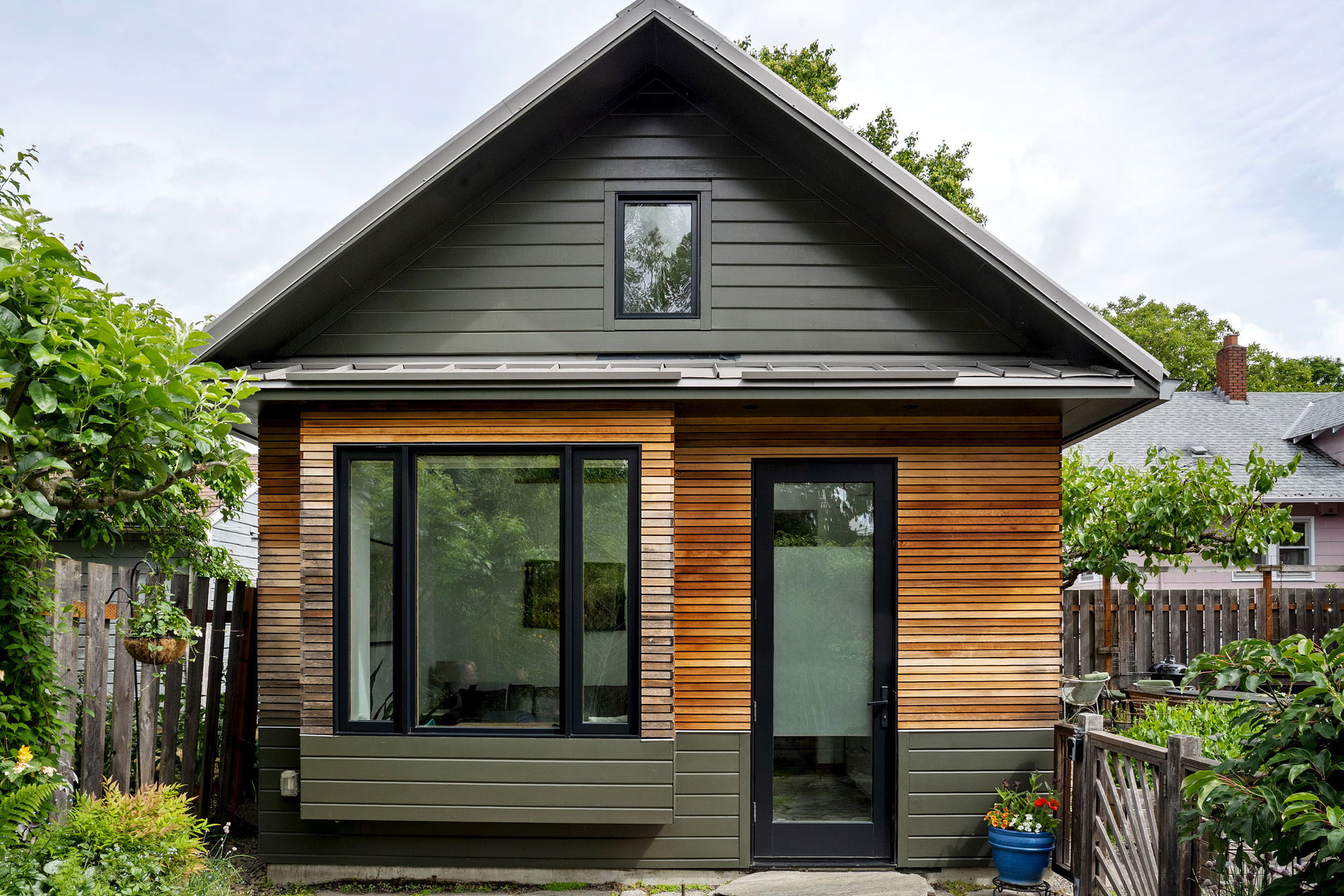

Front elevation of the Irving Park ADU with cedar lap siding, glazed French doors, and a window beneath a standing-seam metal roof, by Tweto Architecture

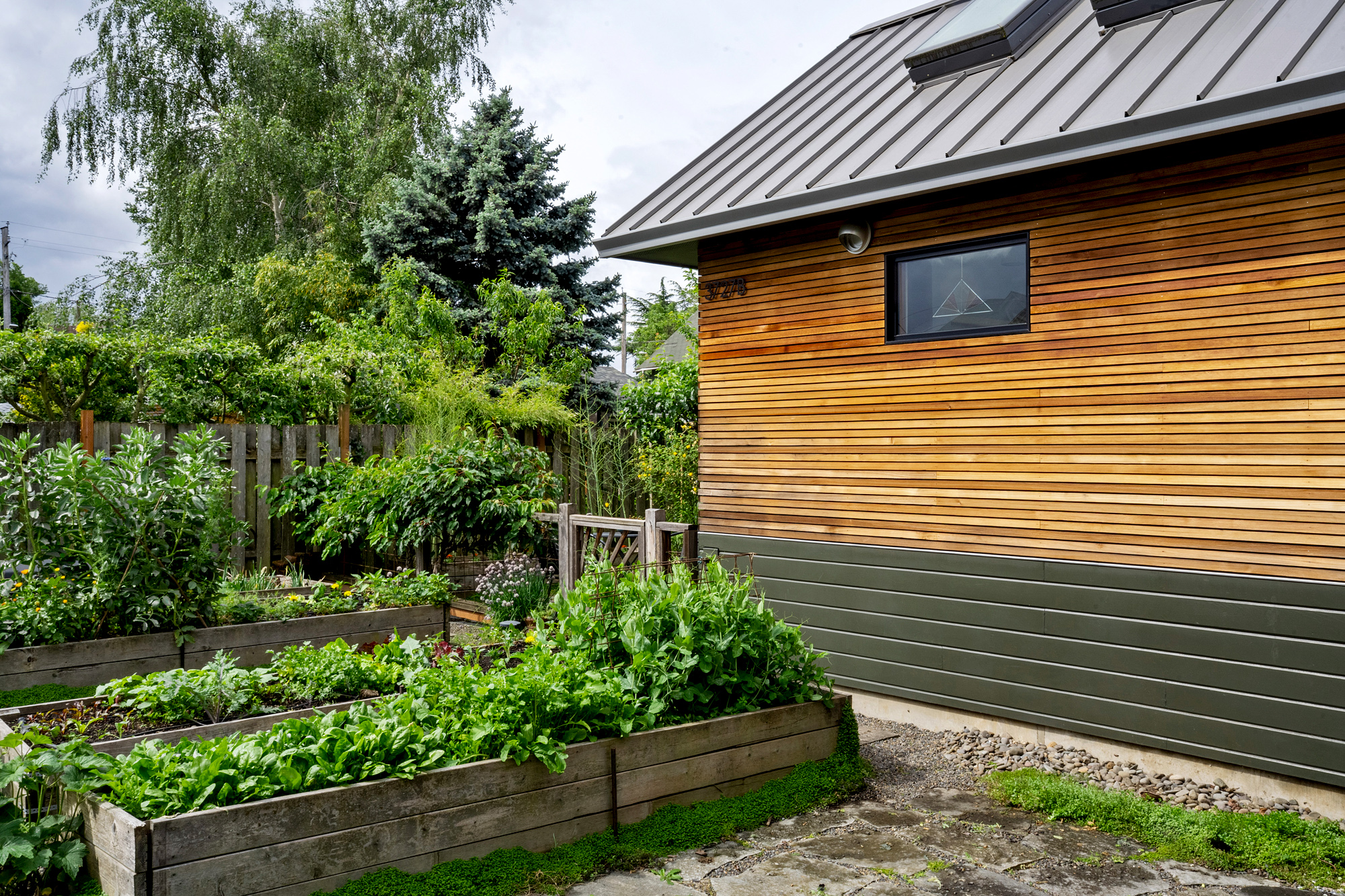

Side elevation of the Irving Park ADU with cedar siding and a window above raised garden beds and a gravel path, by Tweto Architecture

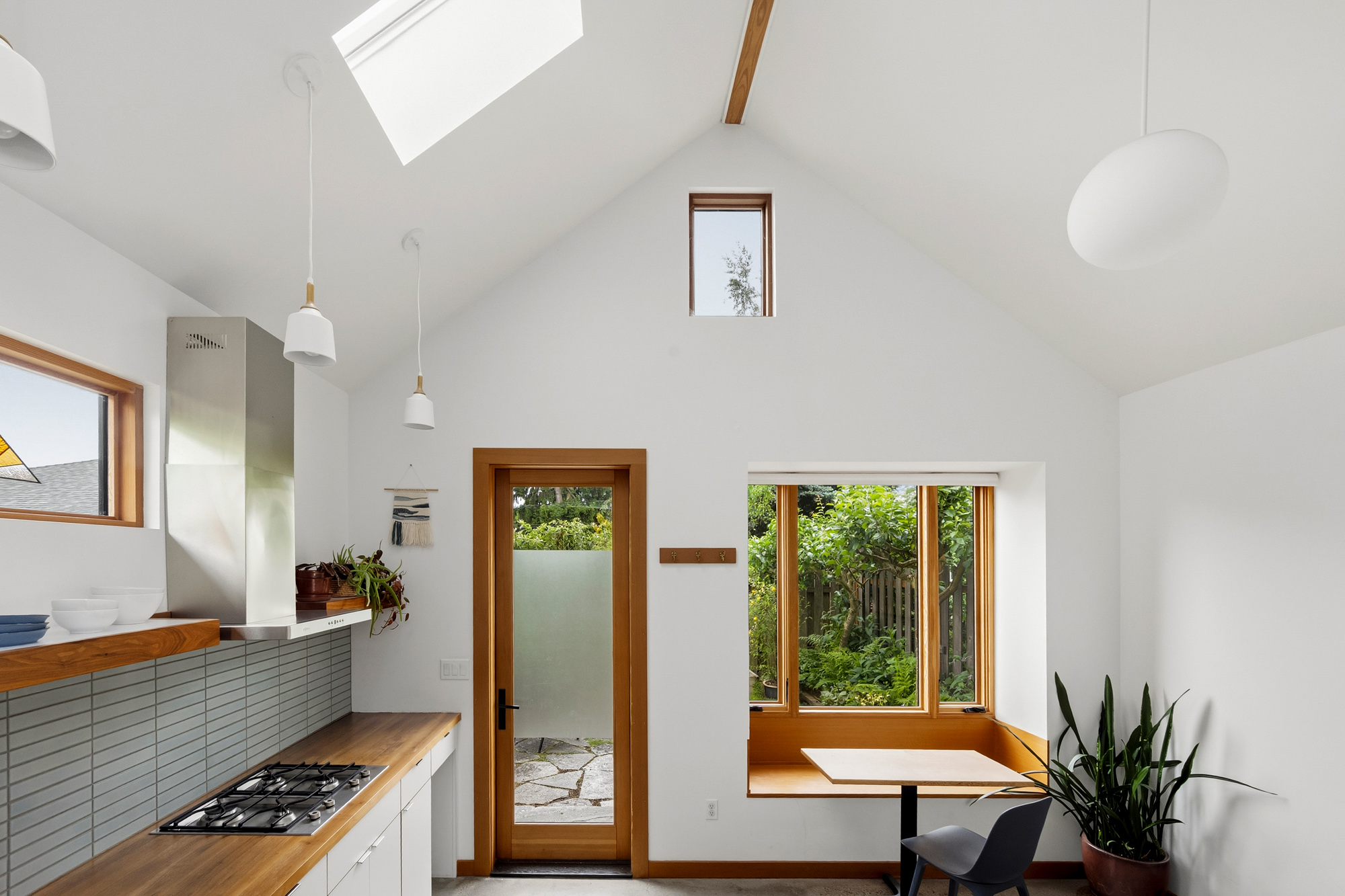

Kitchen and living area with partially vaulted ceiling, skylight, and exposed ridge beam, opening through a glazed door and bay window to the garden, Irving Park ADU by Tweto Architecture

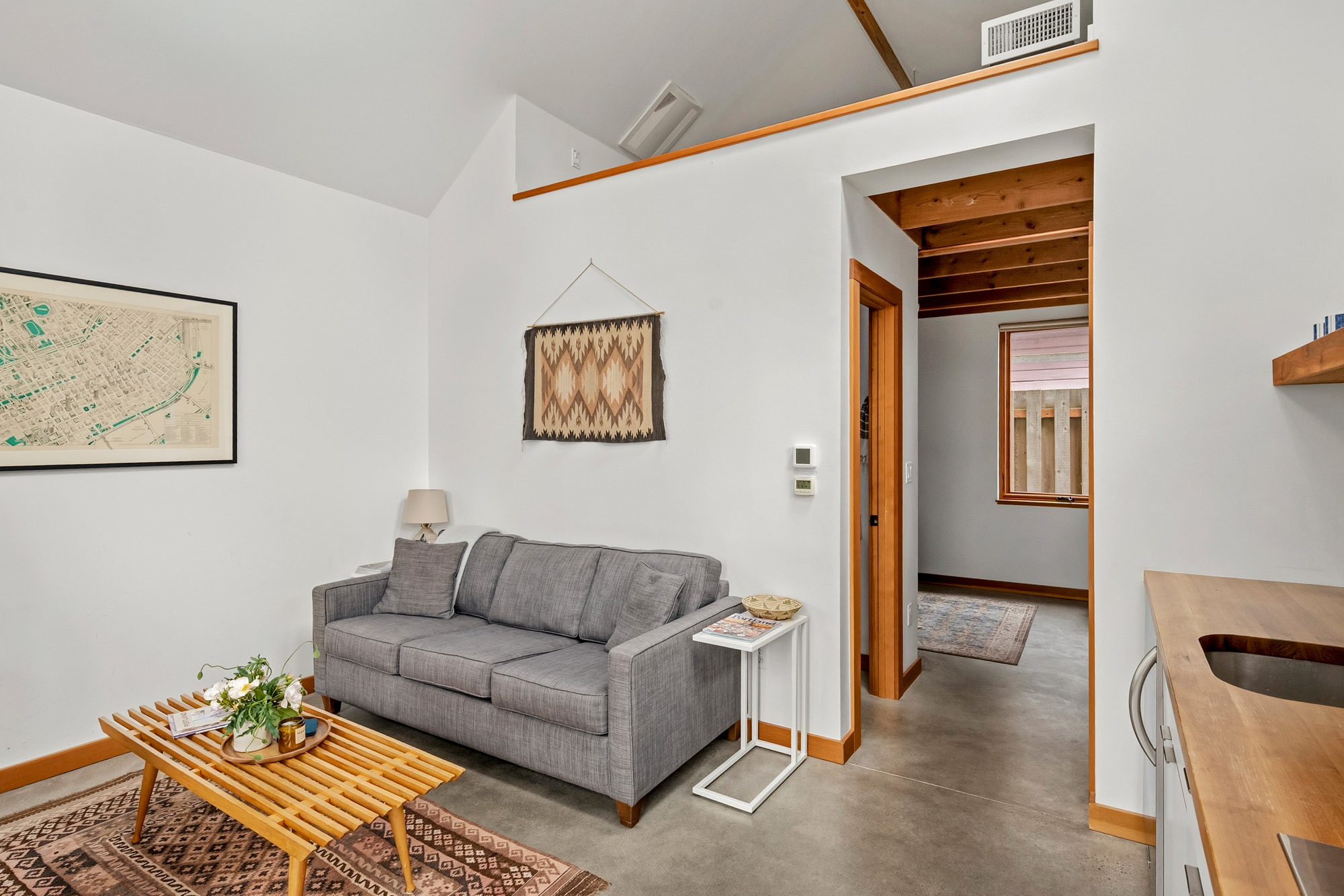

Living area with grey sofa, woven wall hanging, and polished concrete floor, with an open loft above and the bedroom visible through the doorway, Irving Park ADU by Tweto Architecture

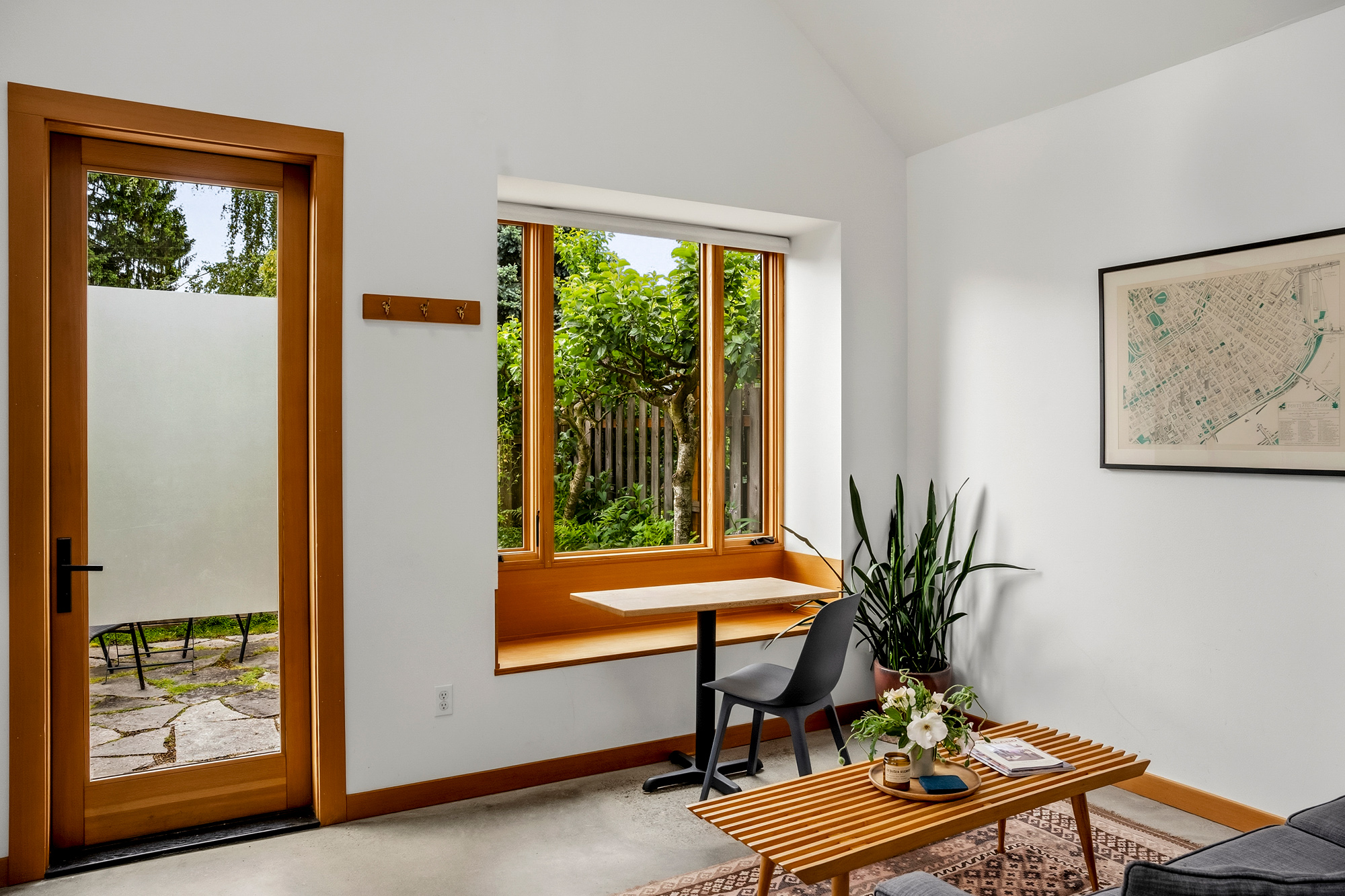

Glazed door to the patio beside a built-in bay window desk overlooking the garden, Irving Park ADU by Tweto Architecture

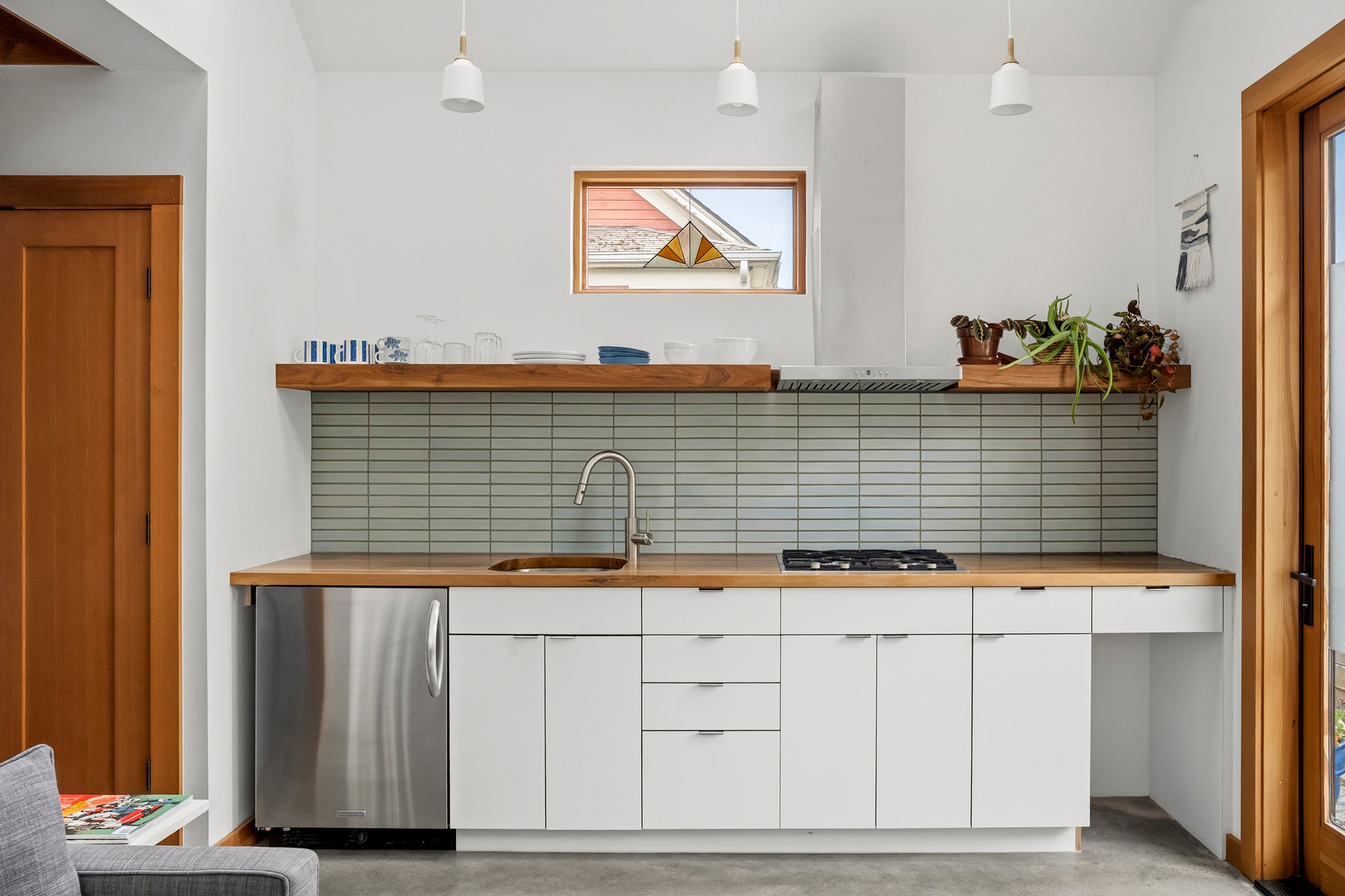

Kitchen with white cabinets, butcher block counters, sage green tile backsplash, gas range, and open wood shelving, Irving Park ADU by Tweto Architecture

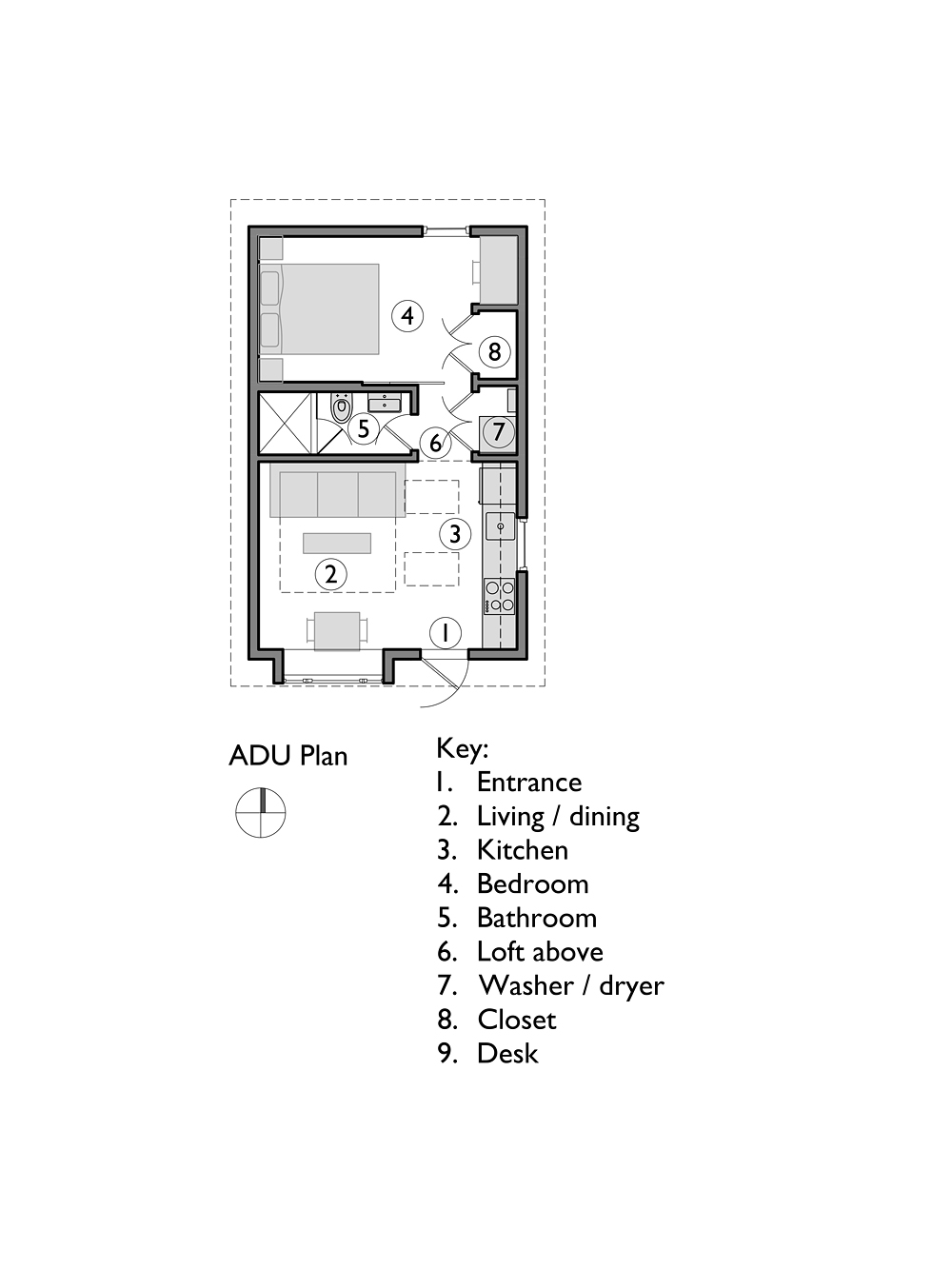

Floor plan of the Irving Park ADU showing the entrance, living/dining area, kitchen, bedroom, bathroom, and loft above, by Tweto Architecture

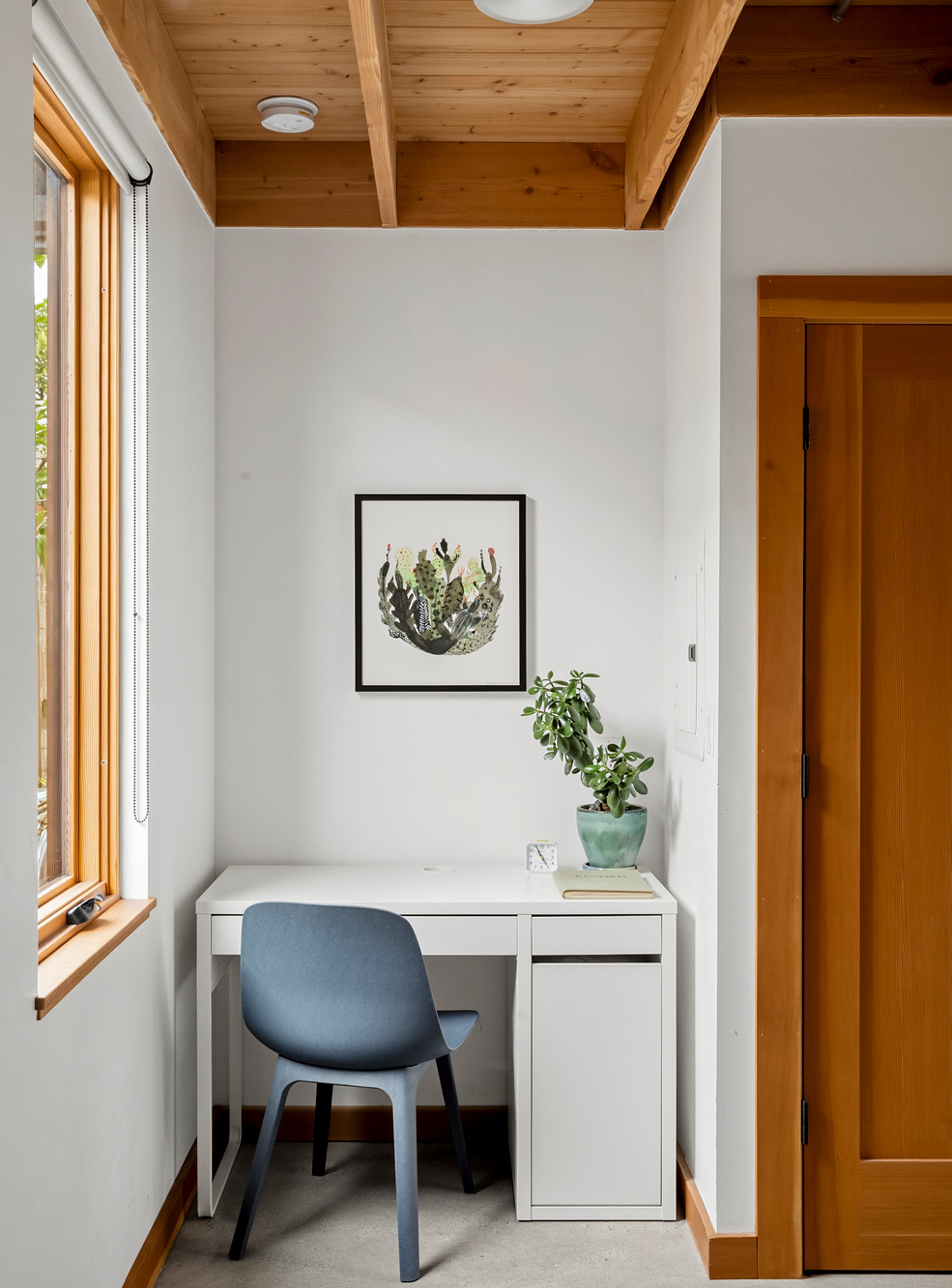

Desk nook with exposed wood ceiling, white desk, blue chair, and a window looking into the garden, Irving Park ADU by Tweto Architecture

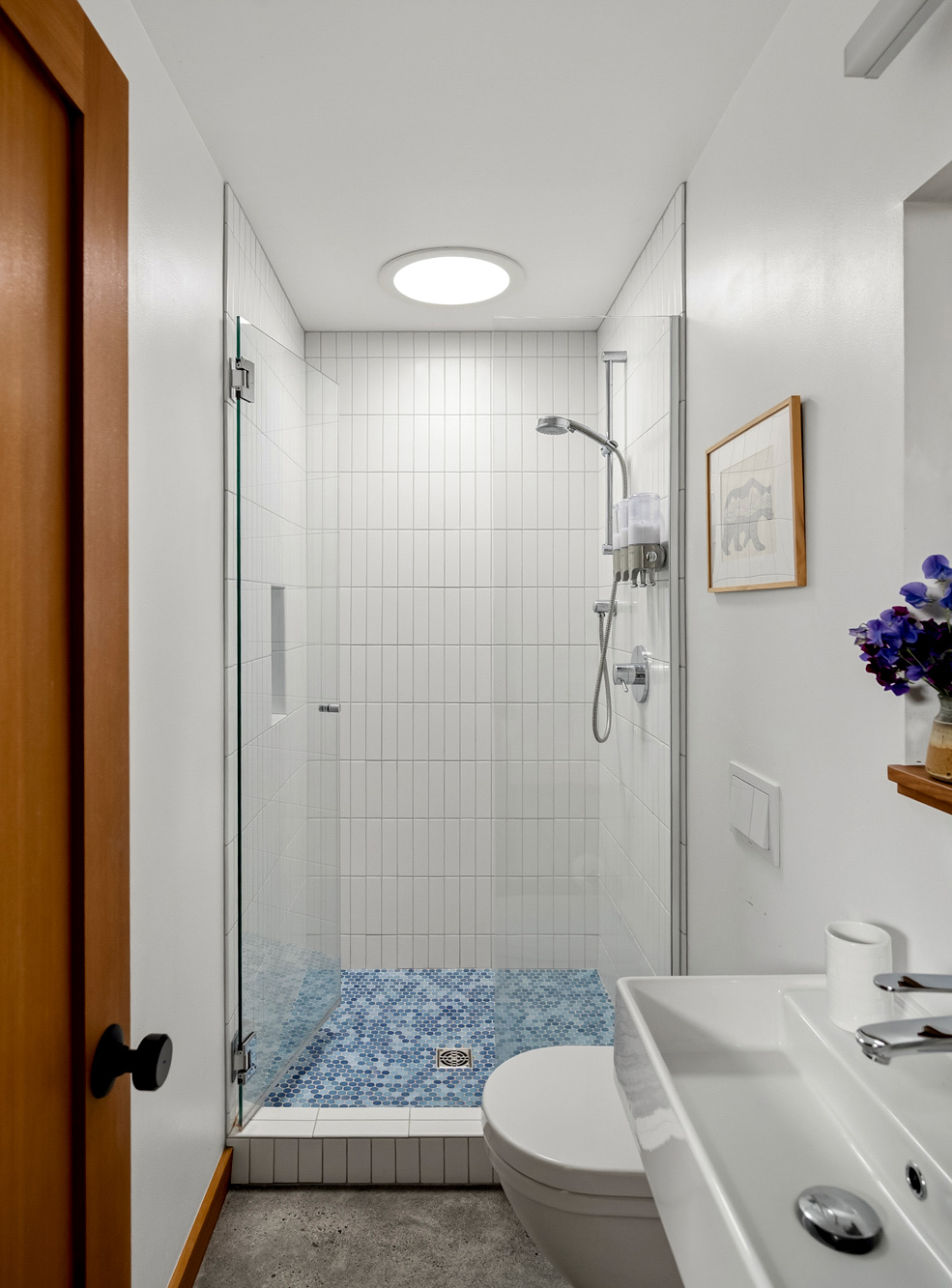

Bathroom with a glass-enclosed shower, white subway tile, blue mosaic floor tile, and a sun tunnel skylight, Irving Park ADU by Tweto Architecture

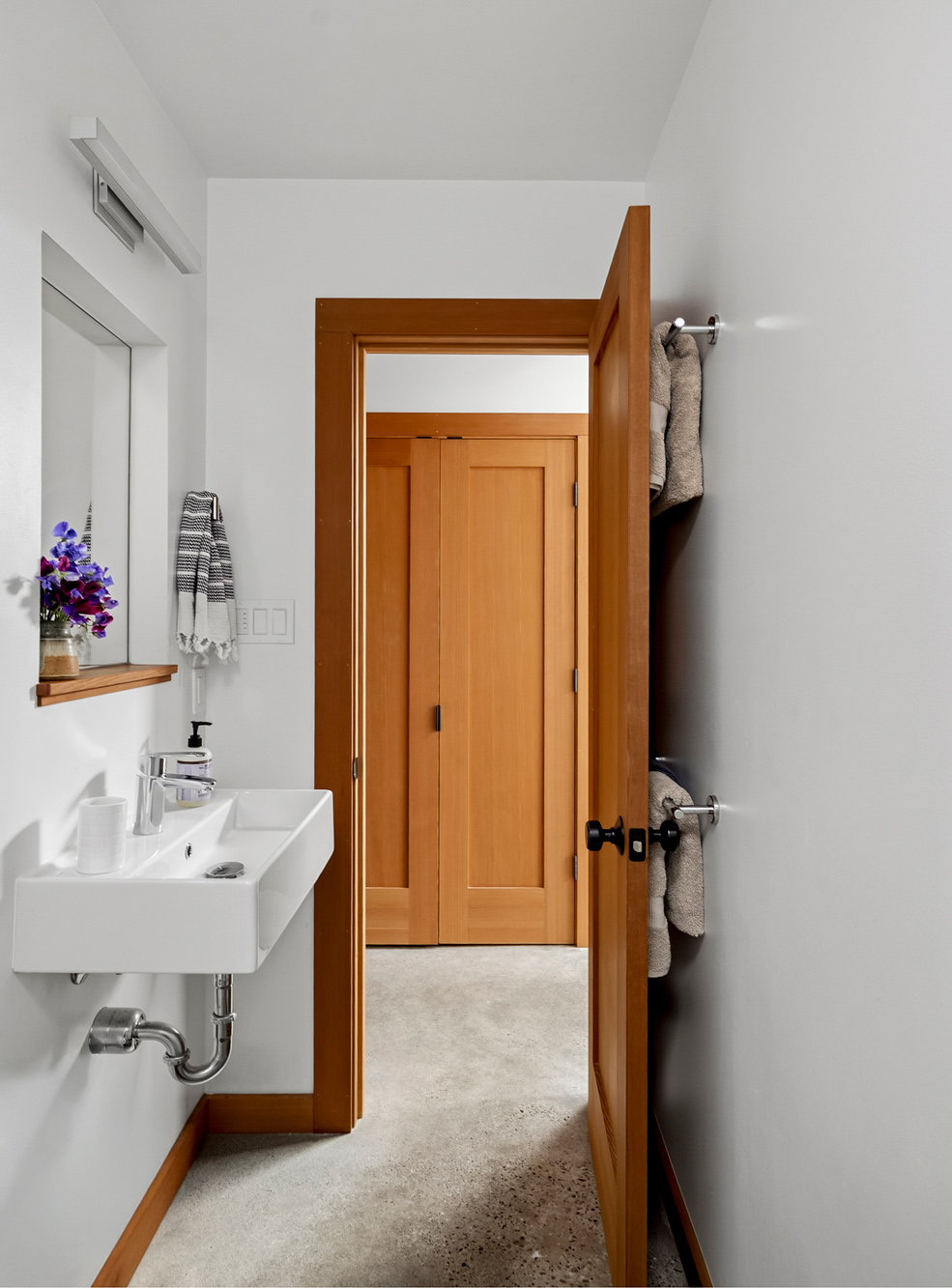

Bathroom vanity with a wall-hung sink and mirror, looking through to the closet with built-in Douglas Fir doors, Irving Park ADU by Tweto Architecture

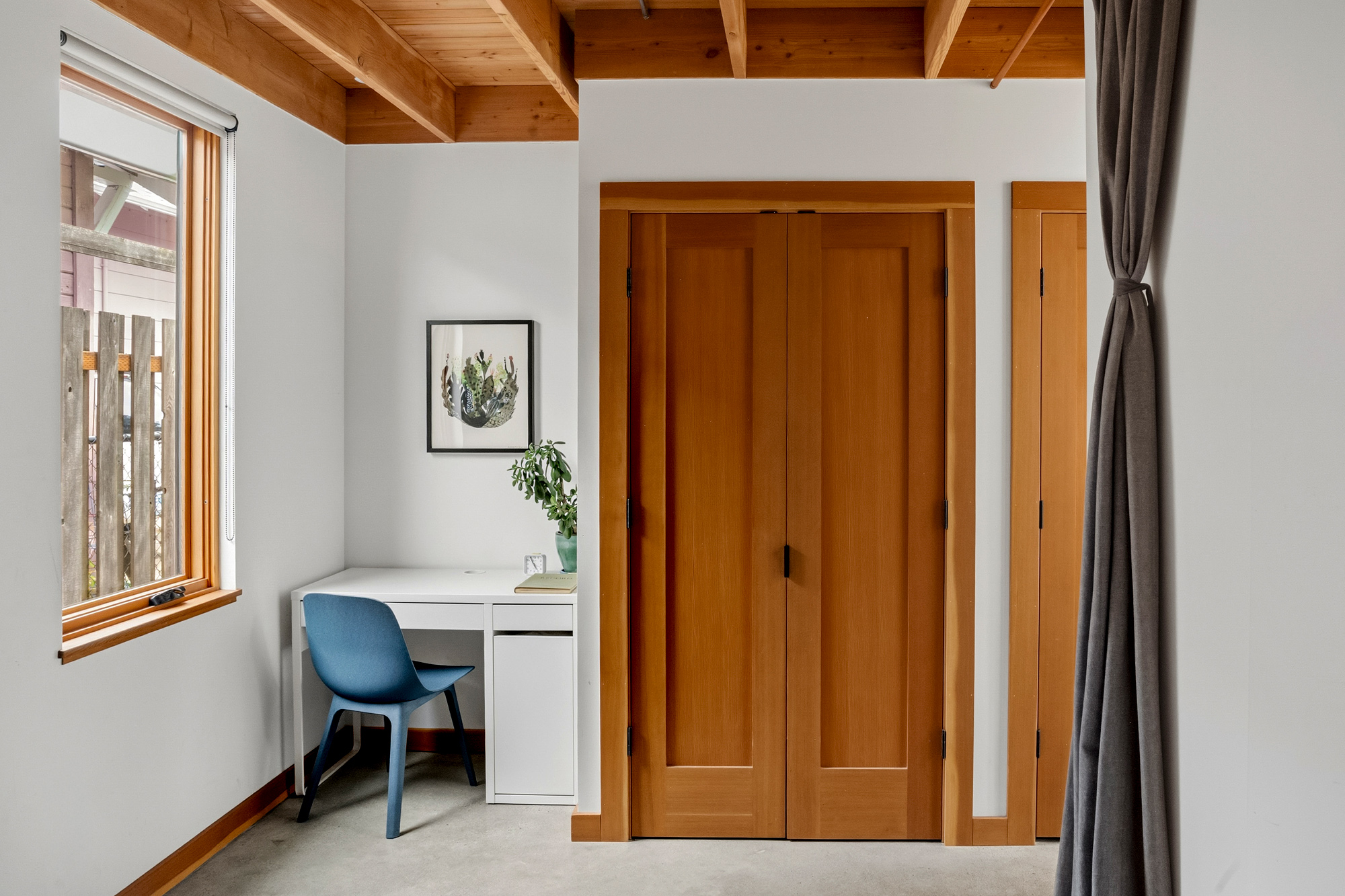

Bedroom corner with built-in Douglas Fir closet doors, exposed wood ceiling, and a desk nook beside the window, Irving Park ADU by Tweto Architecture

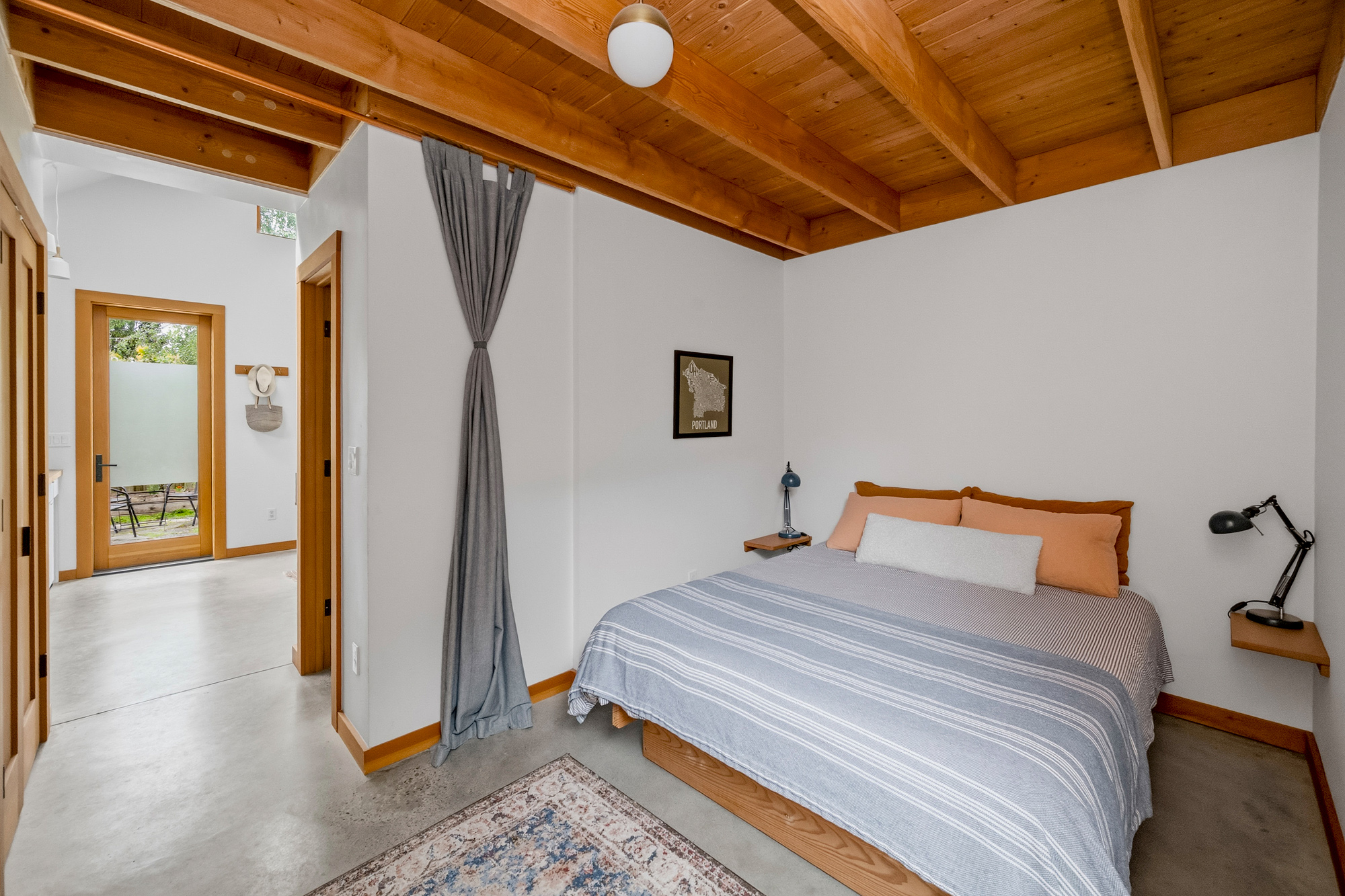

Bedroom with exposed wood ceiling and beams, looking out through the doorway toward the living area and glazed exterior door, Irving Park ADU by Tweto Architecture

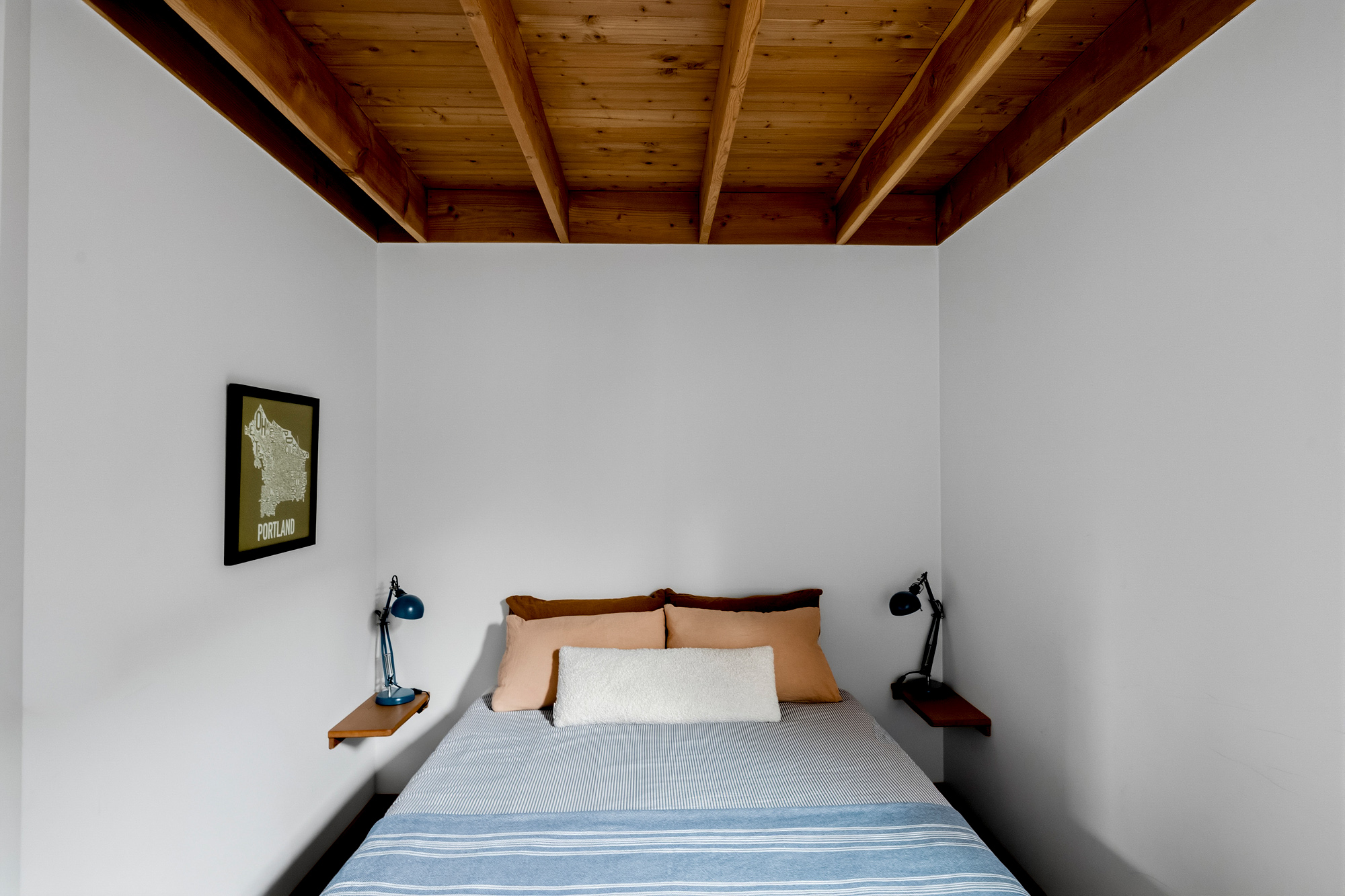

Bedroom with exposed wood ceiling, bed with blue and cream bedding, and built-in nightstands with reading lamps, Irving Park ADU by Tweto Architecture

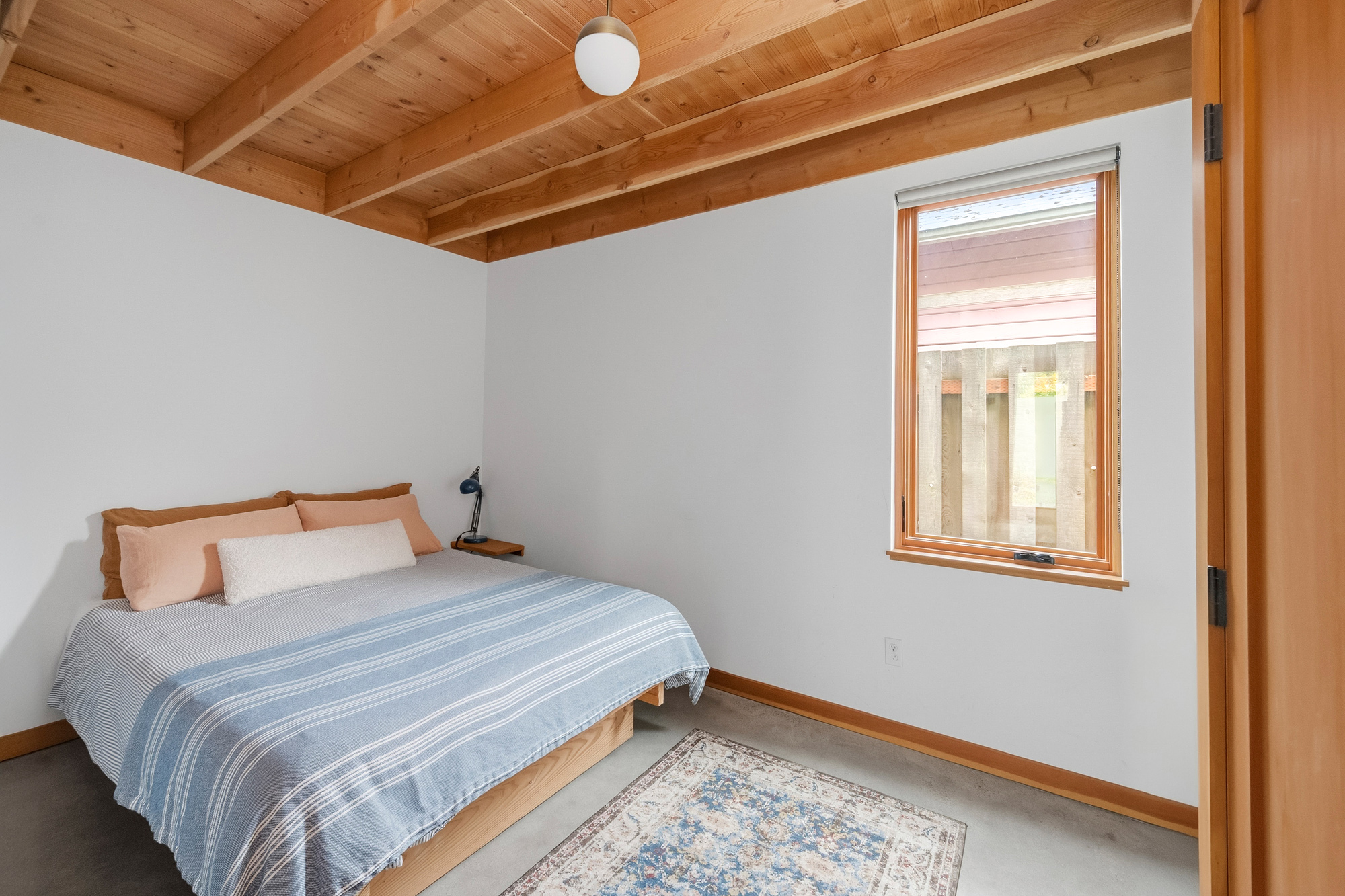

Bedroom with exposed wood ceiling and a window looking out over the side yard, Irving Park ADU by Tweto Architecture
